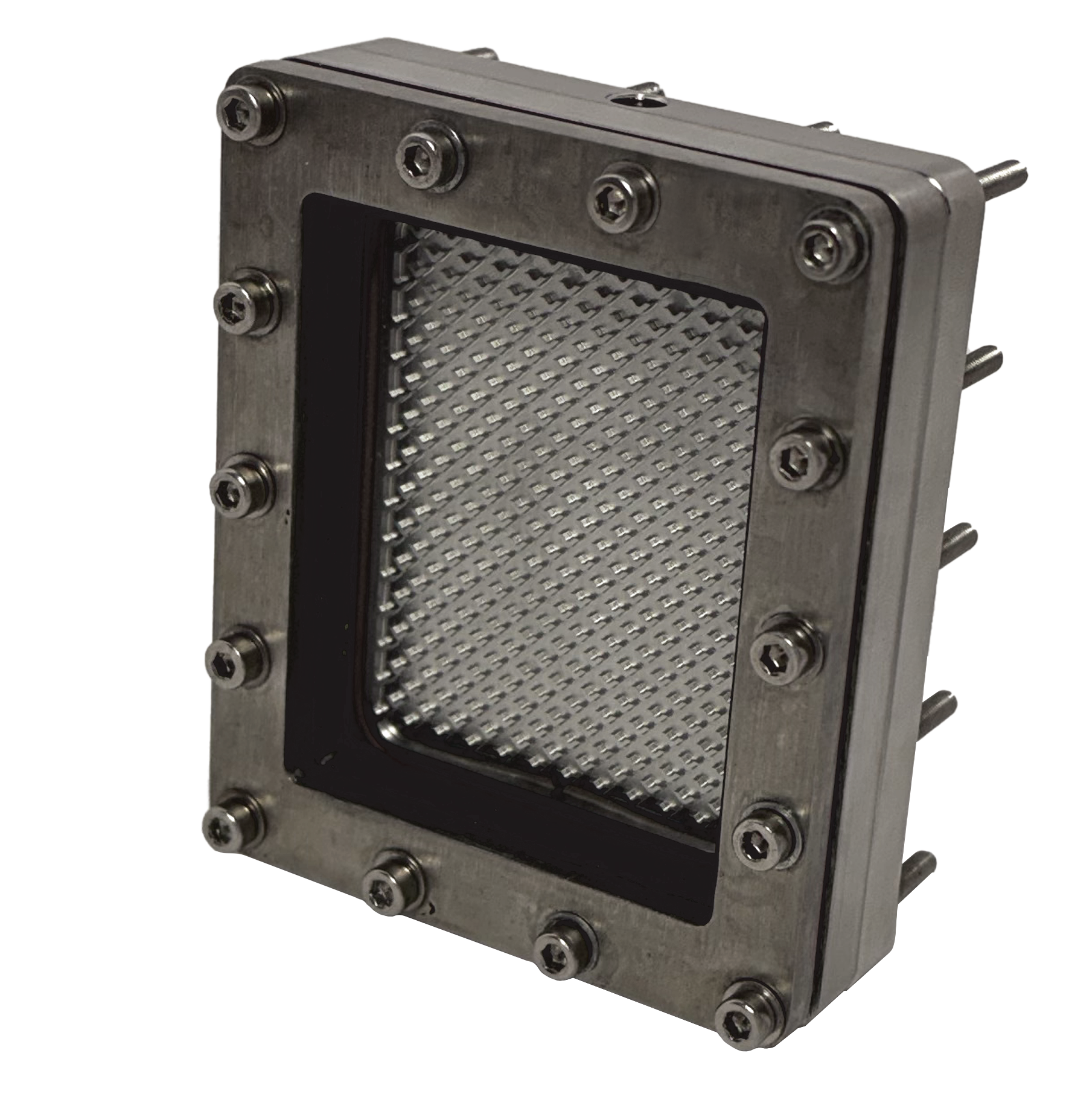

REDEEM Arrow Flow Reactor
Overview:
The Redeem Arrow Reactor is a versatile continuous flow reactor featuring advanced static mixing elements that improve mass transfer and heat transfer to increase reaction rate and boost yield across a wide range of chemistries. With an optional optical window, the reactor supports photochemical flow reactions by maintaining a thin liquid layer to maximize light penetration.
Specifications:
Volume: 2,053 mL Illuminated area: 20,53 cm²Depth: 1 mm Flow cross section: 32,04 mm² Temperature range: -50/200°C (300°C upon request)Pressure range: Up to 12 bar with glass/ X bar without) Residence time: ~ 10-8000 seconds Materials option: Stainless steel, Hastelloy, Copper, PEEK, Anodized Aluminum Window options: Borosilicate, quartz, ITO, Sapphire Dimensions: 8,6 x 7,2 cmKey Benefits of Arrow:
Optimized mass and heat transfer reducing reaction times.
Turbulent flow for efficient mixing of liquids and slurries
2 mixing pattern in 1 reactor, maximizing the rate of your reaction
Possible applications:
Ideal for liquid–liquid, gas–liquid, and solid-involved flow chemistry, making it a practical platform for reaction development, scale-up screening, and process optimization. The mixing arrows can be oriented in two configurations to create distinct flow patterns for tuning mixing performance to your chemistry.
Liquid-Liquid
Homogeneous dispersion of immiscible fluids.
Gas-Liquid
Enhances mass transfer in catalytic or absorption reactions.
Solid-Liquid
Ideal for suspensions, crystallization, and nanoparticle synthesis.
Advanced Mixing Technology
Equipped with a high-precision microfluidic system, the Redeem Arrow Flow Reactor ensures uniform distribution of reactants, eliminating concentration and temperature gradients, which leads to greater reproducibility in chemical processes.
Design and Operation:
Robust and Highly Efficient Structure
Modular design made of stainless steel and corrosion-resistant materials, ensuring durability and compatibility with a wide range of reactants.
Optimized configuration for seamless integration with existing industrial equipment and processes.
Simplified operation, reducing the need for manual intervention and maintenance.
Applications
The Redeem Arrow Flow Reactor is the ideal solution for a wide range of industries, including:
Pharmaceutical Industry
Synthesis of active ingredients with high purity and repeatability.
Chemical Industry
Production of polymers, catalysts, and fine chemicals.
Energy sector
Applications in biofuels and thermal conversion processes.
Nanotechnology
Production of nanoparticles and advanced materials.
