REDEEM Coated Flow Reactor
Overview:

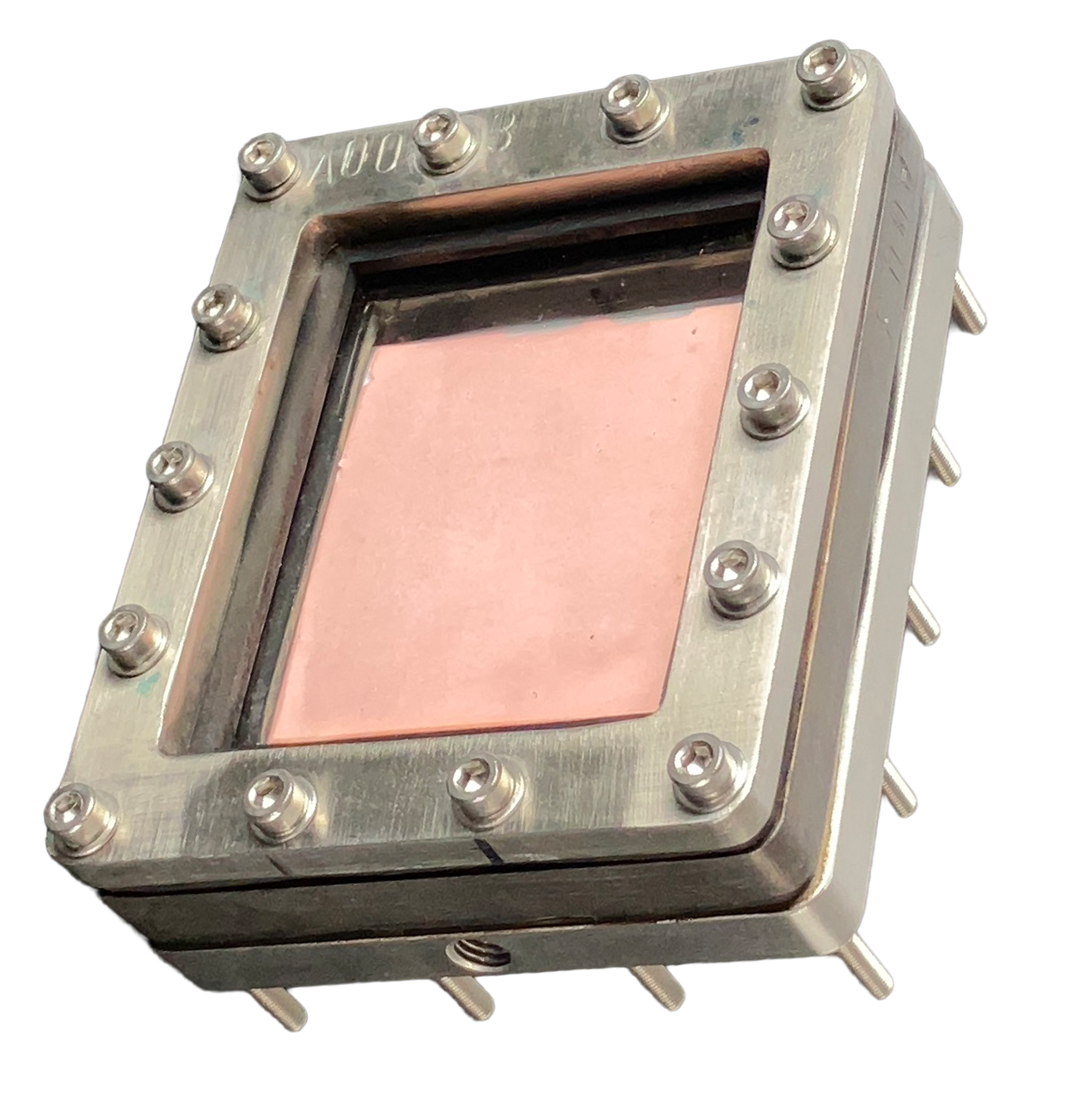

The Coated Reactor is a Thin Film Reactor that features an interior surface coated with finely dispersed catalyst powder of your chosen composition (see our catalysts or use your own) to increase catalytic activity and accelerate reactions. Coating can be applied to either the metallic back plate or the glass window face (if present) of the reaction chamber, allowing flexibility in catalyst placement and illumination geometry. The window can be coated and used in any other Redeem Flow Reactor.
Specifications:
Depth: 0.1 - 5 mm
Volume: 0.26 - 13.19 mL
Coating available: Your coating, our see our catalysts
Coated area: 26.38 cm²
Illuminated area: 26.38 cm²
Flow cross section: 4.8-240 mm²
Temperature range: -20/200°C
Pressure range: Up to 12 bar
Residence time: ~ 1/52 - 1020/52740 seconds
Materials option: Stainless steel, Hastelloy, Cu, PEEK, Anodized Aluminum
Window options: Borosilicate, quartz, ITO, Sapphire
Dimensions: 8.6 x 7.2 cmKey Benefits of Coated:
Coating on the back plate and/or on the window.
Increased catalytic activity of your catalyst
Easy to clean and robust
Possible applications:
Best for flow processes where a catalyst-coated surface enables faster conversions and simplified handling versus suspended catalysts. See the publication about photocatalytic H₂ evolution with the Coated Reactor.
Solid-Gas
Enhances mass transfer in catalytic or absorption reactions.
Solid-Liquid
Ideal to test your catalyst immobilized.
Design and Operation:
Robust and Highly Efficient Structure
Modular design made of stainless steel and corrosion-resistant materials, ensuring durability and compatibility with a wide range of reactants.
Optimized configuration for seamless integration with existing industrial equipment and processes.
Simplified operation, reducing the need for manual intervention and maintenance.
Applications
The Redeem Thin-Film Flow Reactor is the ideal solution for a wide range of industries, including:
Pharmaceutical Industry
Synthesis of active ingredients with high purity and repeatability.
Chemical Industry
Production of polymers, catalysts, and fine chemicals.
Energy sector
Applications in biofuels and thermal conversion processes.
Nanotechnology
Production of nanoparticles and advanced materials.
