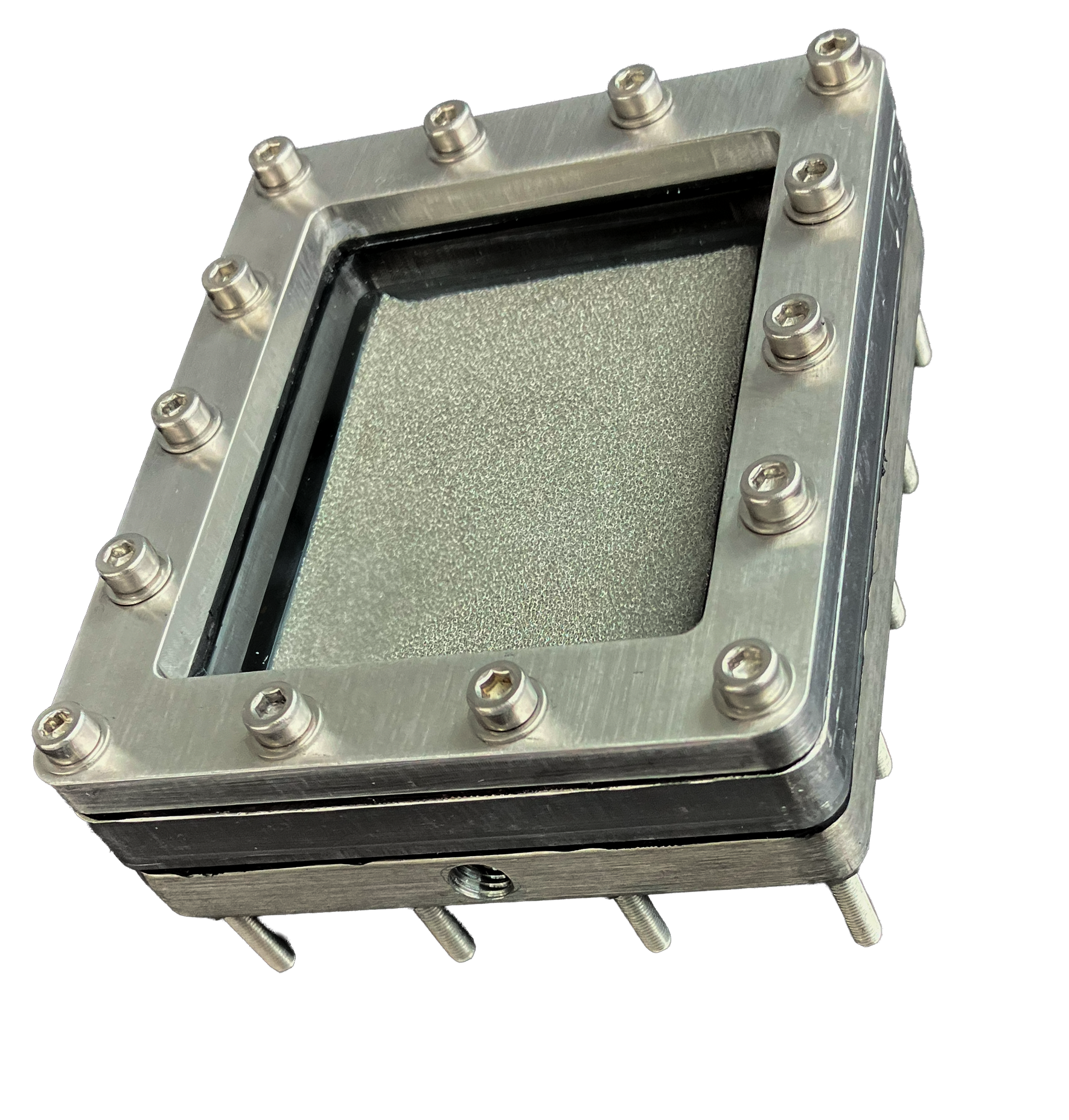

REDEEM Foam Flow Reactor
Overview:
The Foam Reactor is a flow reactor that integrates a metallic or ceramic foam structure (see our foams or use your own) inside the reactor channel to maximize surface-area contact between the reacting stream and the catalyst or support material. The open-cell geometry minimizes flow channeling and dead zones, delivering consistent contact and high catalytic efficiency.
Specifications:
Volume: 0.26 - 13.19 mL - volume of the foam
Illuminated area: 26.38 cm²
Depth: 0.1 - 5 mm
Temperature range: -20/200°C
Pressure range: Up to 12 bar
Residence time: ~ 1/52 - 1020/52740 seconds
Flow cross section: 32.04 mm²
Foam options: Your foam or see our foam available from 40 - 100 ppi.
Materials option: Stainless steel, Hastelloy, Cu, PEEK, Anodized Al
Window options: Borosilicate, quartz, ITO, Sapphire
Dimensions: 8.6 x 7.2 cmKey Benefits of Foam:
Easy to replace the foam
Compatible to all foam in the market
Minimize flow channeling and dead zones
Possible applications:
Designed for foam-based catalysis and photocatalytic flow reactions, especially when you want to use foams as catalyst or catalyst supports. Use it to evaluate foam materials under flow and optimize performance via controlled contact and illumination.
Gas-Solid
Enhances mass transfer in catalytic or absorption reactions.
Solid-Liquid
Ideal platform to test your foam performance
Design and Operation:
Robust and Highly Efficient Structure
Modular design made of stainless steel and corrosion-resistant materials, ensuring durability and compatibility with a wide range of reactants.
Optimized configuration for seamless integration with existing industrial equipment and processes.
Simplified operation, reducing the need for manual intervention and maintenance.
Applications
The Redeem Foam Flow Reactor is the ideal solution for a wide range of industries, including:
Pharmaceutical Industry
Synthesis of active ingredients with high purity and repeatability.
Chemical Industry
Production of polymers, catalysts, and fine chemicals.
Energy sector
Applications in biofuels and thermal conversion processes.
Nanotechnology
Production of nanoparticles and advanced materials.
