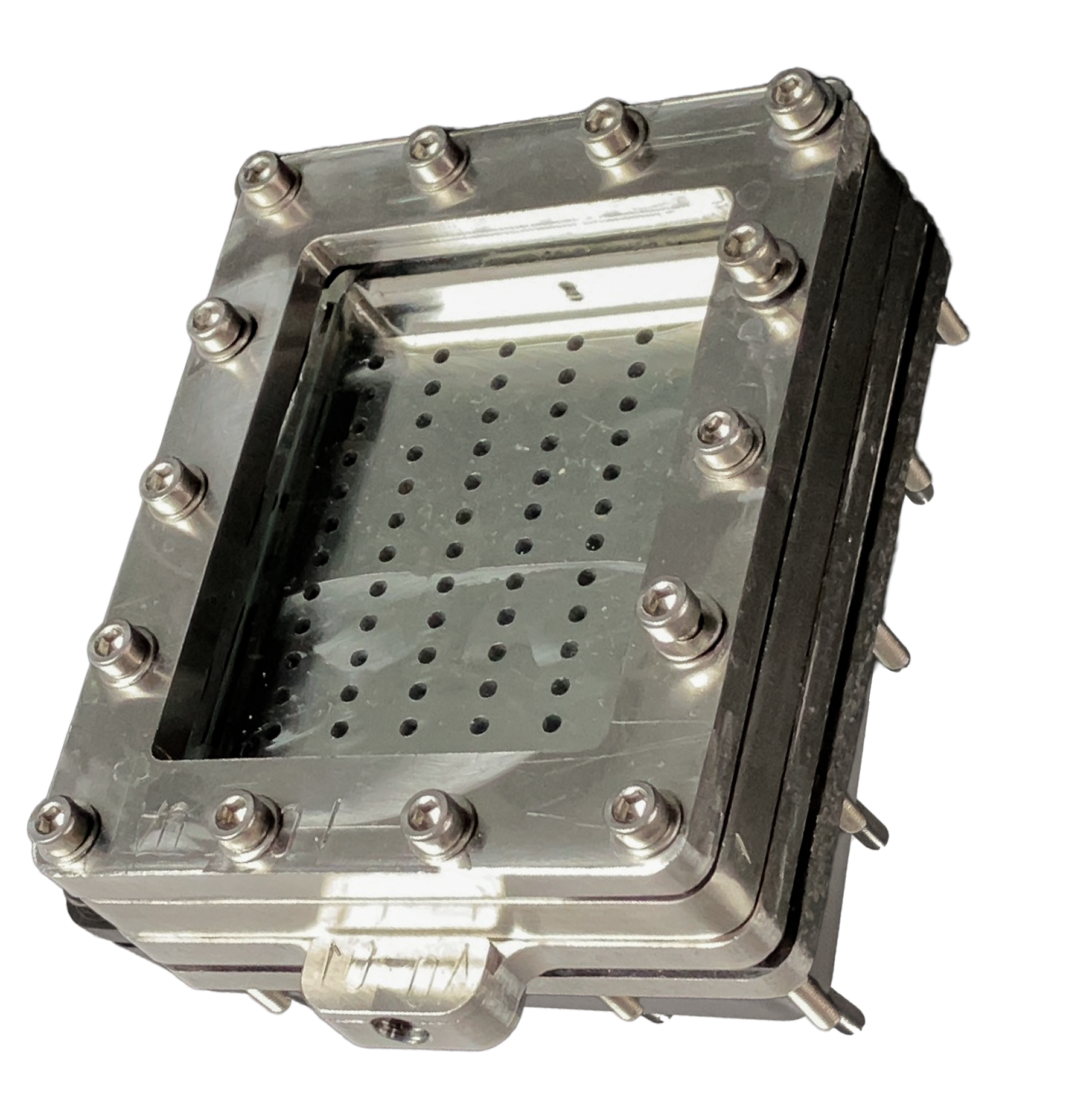

REDEEM Holey-Sparger Flow Reactor
Overview:
The Holey Sparger Reactor is a flow reactor that uses a perforated sparger to introduce gas into a liquid phase by generating small bubbles, increasing gas–liquid interfacial area and improving mass transfer. Unlike passive mixing reactors, the reactor allows precise control over gas introduction rate and bubble size through sparger design, enabling safer and more reproducible handling of reactive gases such as H₂, O₂, and CO.
Specifications:
Depth: Variable (1 - 5 mm)
Volume: Variable (1.3 - 13.7 mL)
Holes size: 0.1 - 5 mm
Illuminated area: 26.38 cm²
Temperature range: -20/200°C (300°C upon request)
Pressure range: Up to 12 bar
Residence time: ~ 1/52 - 1020/52740 seconds
Materials option: Stainless steel, Hastelloy, Cu, PEEK, Anodized Al
Window options: Borosilicate, quartz, ITO, Sapphire
Dimensions: 8.6 x 7.2 cmKey Benefits of Holey-Sparger:
Excellent gas-liquid interfacial area
Adjustable liquid thickness
Safe with every type of gas
Possible applications:
Designed for gas–liquid reactions in flow where efficient sparging of gases such as hydrogen, oxygen, carbon monoxide, or nitrogen can improve reaction rates and control.
Liquid-Gas
Enhances gas-liquid interfacial area
Design and Operation:
Robust and Highly Efficient Structure
Modular design made of stainless steel and corrosion-resistant materials, ensuring durability and compatibility with a wide range of reactants.
Optimized configuration for seamless integration with existing industrial equipment and processes.
Simplified operation, reducing the need for manual intervention and maintenance.
Applications
The Redeem Holey-Sparger Flow Reactor is the ideal solution for a wide range of industries, including:
Pharmaceutical Industry
Synthesis of active ingredients with high purity and repeatability.
Chemical Industry
Production of polymers, catalysts, and fine chemicals.
Energy sector
Applications in biofuels and thermal conversion processes.
Nanotechnology
Production of nanoparticles and advanced materials.
