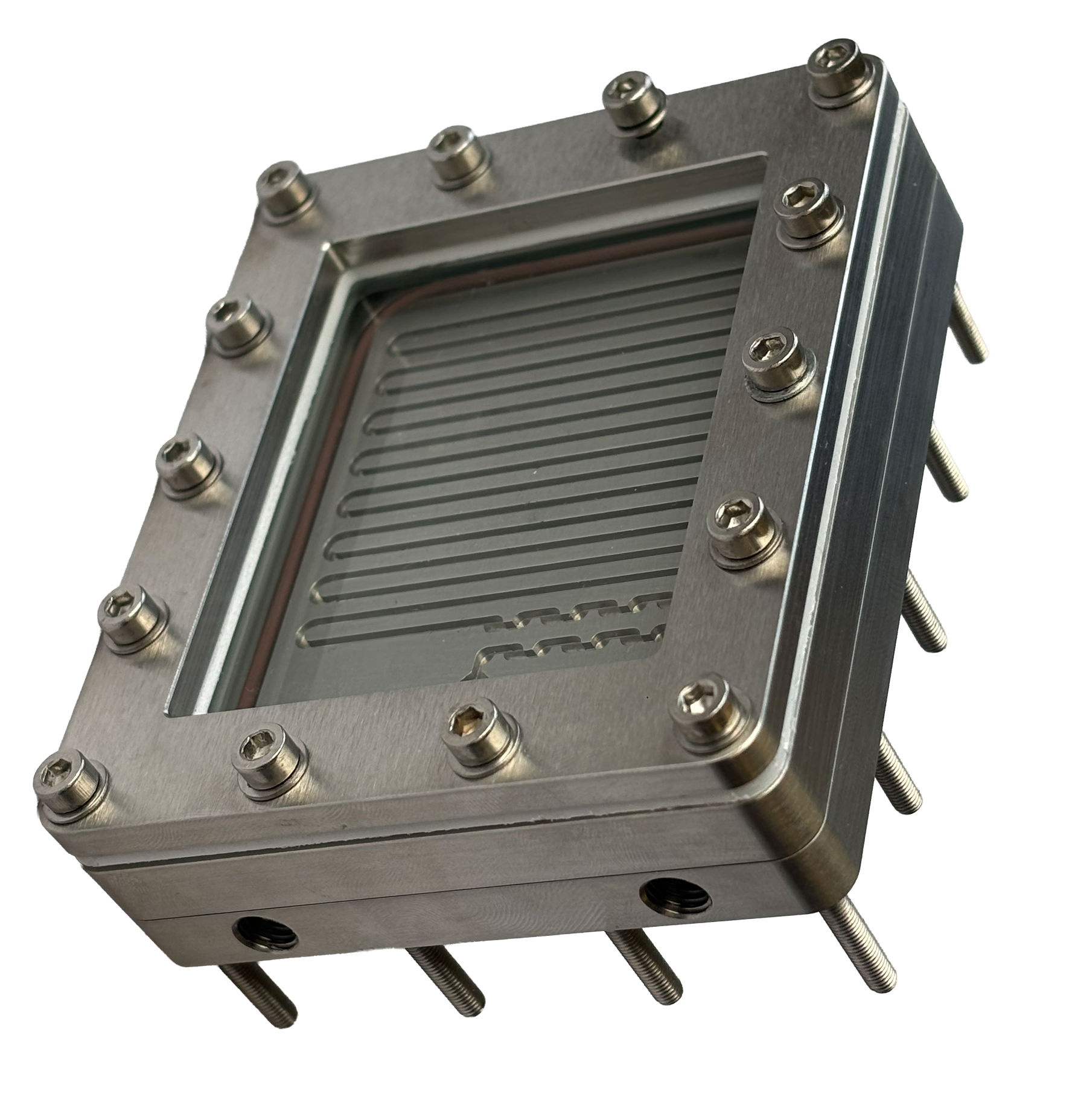

REDEEM Micro Flow Reactor
Overview:
The Micro Reactor is a flow reactor engineered for laminar mixing and ultrashort, tightly controlled residence times. Its narrow, turning channel architecture generates intense local mixing while maintaining plug or slug flow conditions, minimizing back-mixing and ensuring every fluid element experiences the same reaction history. An optional optical window can be fitted to enable photochemical reactions in flow through a thin, well-illuminated liquid layer.
Specifications:
Volume: 0,805 mL
Illuminated area: 0,805 mm²
Depth: 1 mm
Channel width: 1 mm
Flow cross section: 1 mm²
Temperature range: -20/200°C (up to 300°C on request)
Pressure range: Up to 12 bar
Residence time: ~ 4-3200 seconds
Materials option: Stainless steel, Hastelloy, Cu, PEEK, Anodized Al
Window options: Borosilicate, quartz, ITO, Sapphire
Dimensions 8,6x7,2 cmKey Benefits of Micro:
Minimization of reactant waste, optimizing raw material consumption.
Improved selectivity and chemical conversion, reducing impurity formation.
Scalable production with a lower environmental footprint due to superior energy efficiency.
Possible applications:
The go-to reactor for fast (flash chemistry), exothermic, and chemo selectivity-sensitive reactions where millisecond-level residence time control makes the difference between a clean product and a decomposed one. Equally well-suited for hazardous chemistries, where the small reactor volume and continuous format drastically reduce risk compared to batch processing. Also applicable to fast liquid–liquid reactions where rapid phase contact and short exposure windows are critical to selectivity.
Liquid-Liquid
Homogeneous dispersion of immiscible fluids.
Gas-Liquid
Enhances mass transfer in catalytic or absorption reactions.
Advanced Mixing Technology
Equipped with a high-precision microfluidic system, the Redeem Micro Flow Reactor ensures uniform distribution of reactants, eliminating concentration and temperature gradients, which leads to greater reproducibility in chemical processes.
Design and Operation:
Robust and Highly Efficient Structure
Modular design made of stainless steel and corrosion-resistant materials, ensuring durability and compatibility with a wide range of reactants.
Optimized configuration for seamless integration with existing industrial equipment and processes.
Simplified operation, reducing the need for manual intervention and maintenance.
Applications
The Redeem Micro Flow Reactor is the ideal solution for a wide range of industries, including:
Pharmaceutical Industry
Synthesis of active ingredients with high purity and repeatability.
Chemical Industry
Production of polymers, catalysts, and fine chemicals.
Energy sector
Applications in biofuels and thermal conversion processes.
Nanotechnology
Production of nanoparticles and advanced materials.
