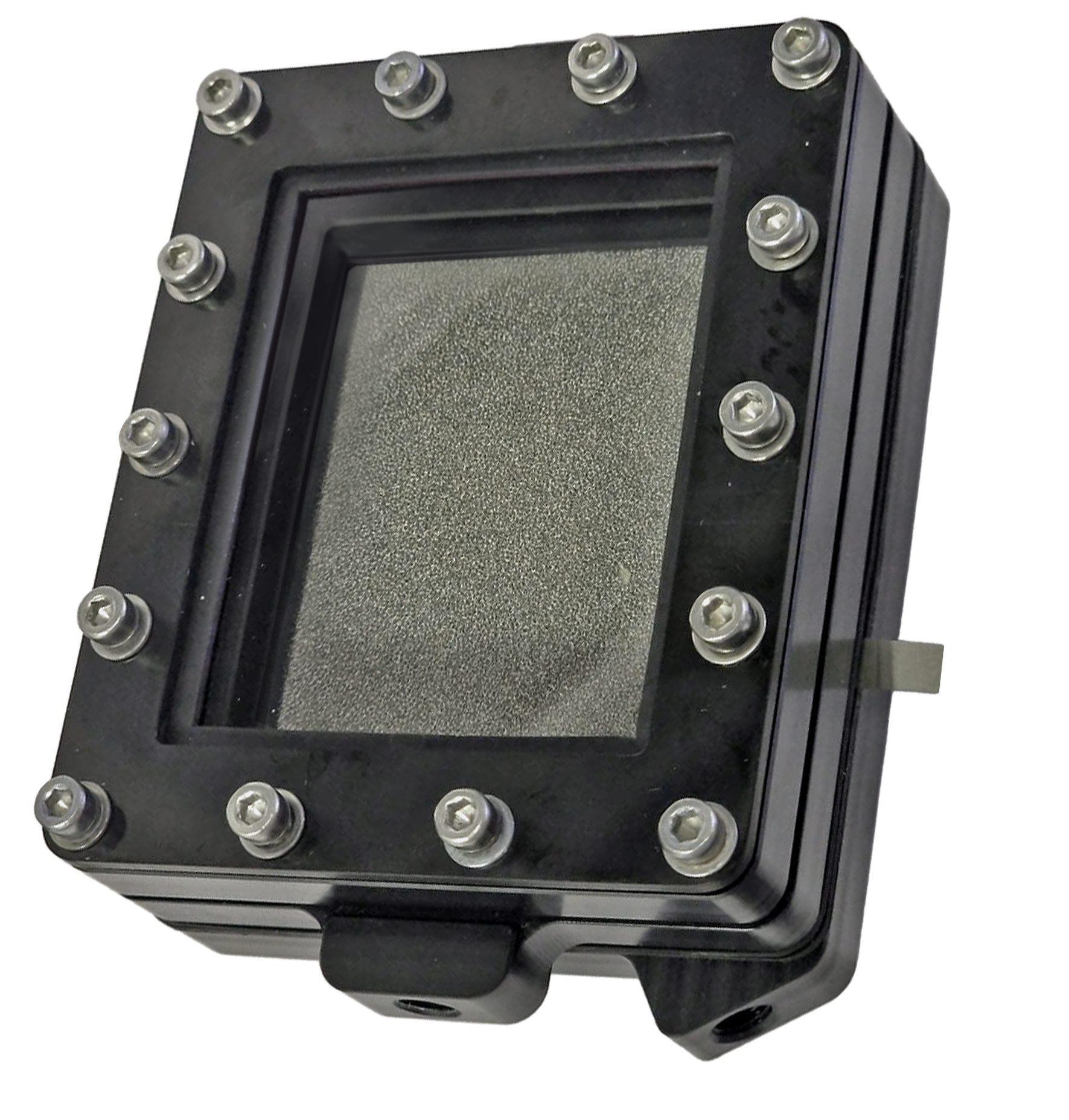

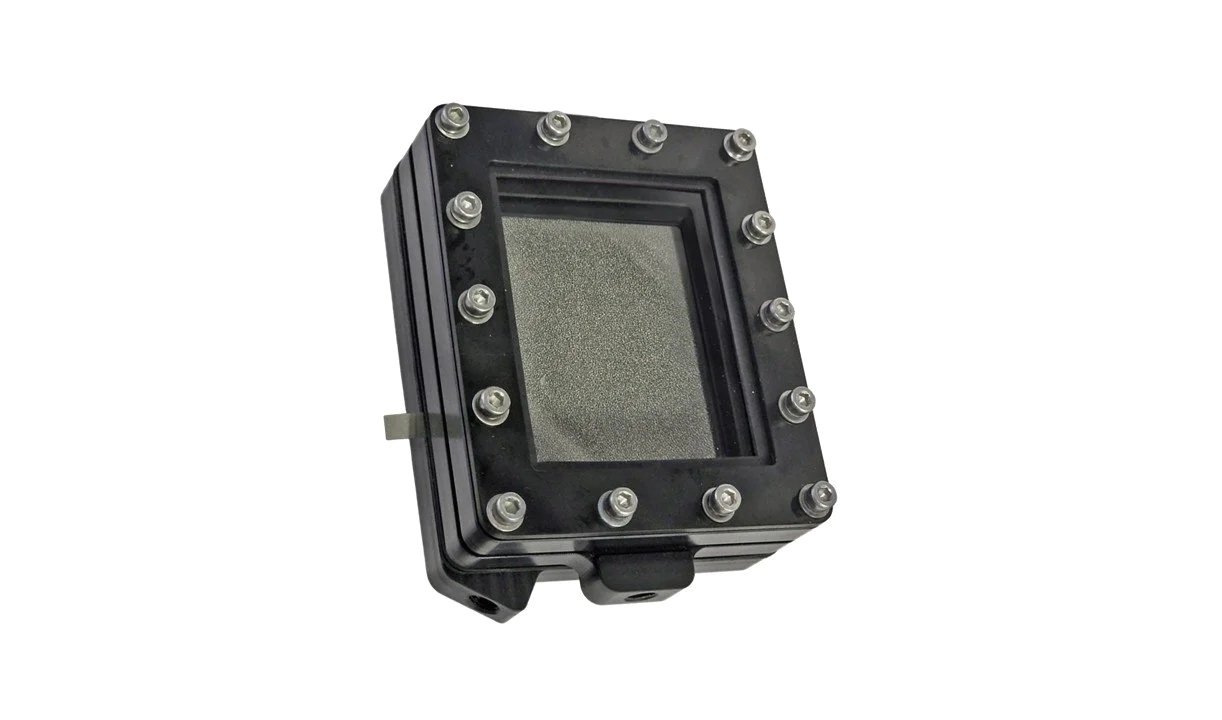

REDEEM Photo Electrochemical Flow Reactor
Overview:
The Redeem (Photo) Electrochemical Reactor (P)EC is a flow reactor designed for investigating and scaling (photo)electrochemical processes under continuous-flow conditions. The platform supports flexible electrode selection and configuration (see our electrode, or use your own), enabling rapid optimization of electroorganic transformations as well as photoelectrochemical studies.
Specifications:
Volume 5-25 mL
Electrodes Your electrode or see ours.
Interelectrode distance: Adjustable between 0-1 cm
Illuminated area 26,38 cm²
Temperature range: -20/200°C
Pressure range: Catholyte 1-5 bar, Anolyte 1-5, Pressure differential 1- 5 bar.
Residence time: 20/100-20000/50000
Material option: PEEK
Window options Borosilicate, quartz, ITO, Sapphire
Dimensions 8,6x7,2 cmKey Benefits of Photo-Electrochemical Reactor:
Divided or undivided cell operation
Adjustable interelectrode gap (0 gap allowed)
Turbulence promoter to improve mass transfer near the electrodes
Possible applications:
Use the (P)EC Reactor for electroorganic synthesis, electrocatalysis screening, and process development where current, electrode material, and cell configuration control selectivity and conversion. It can be applied to both divided and undivided cell operation “with an adjustable interelectrode gap, including ‘zero-gap’ configurations (electrodes pressed against a separator/membrane).
Liquid-Liquid
Enhances mass transfer at the electrode surface
Gas-Liquid
It allows wet and dry electrode chamber, allowing easy separation of gases
Solid-Liquid
Ideal for testing electrodes materials.
Advanced Mixing Technology
Equipped with a high-precision microfluidic system, the Redeem Photo Electrochemiclal Flow Reactor ensures uniform distribution of reactants, eliminating concentration and temperature gradients, which leads to greater reproducibility in chemical processes.
Design and Operation:
Robust and Highly Efficient Structure
Modular design made of PEEK a corrosion-resistant materials, ensuring durability and compatibility with a wide range of reactants, and avoiding short circuits.
Optimized configuration for seamless integration with existing industrial equipment and processes.
Simplified operation, reducing the need for manual intervention and maintenance.
Applications
The Redeem Photo Electrochemical Flow Reactor is the ideal solution for a wide range of industries, including:
Pharmaceutical Industry
Synthesis of active ingredients with high purity and repeatability.
Chemical Industry
Production of polymers, catalysts, and fine chemicals.
Energy sector
Applications in biofuels and thermal conversion processes.
Nanotechnology
Production of nanoparticles and advanced materials.
