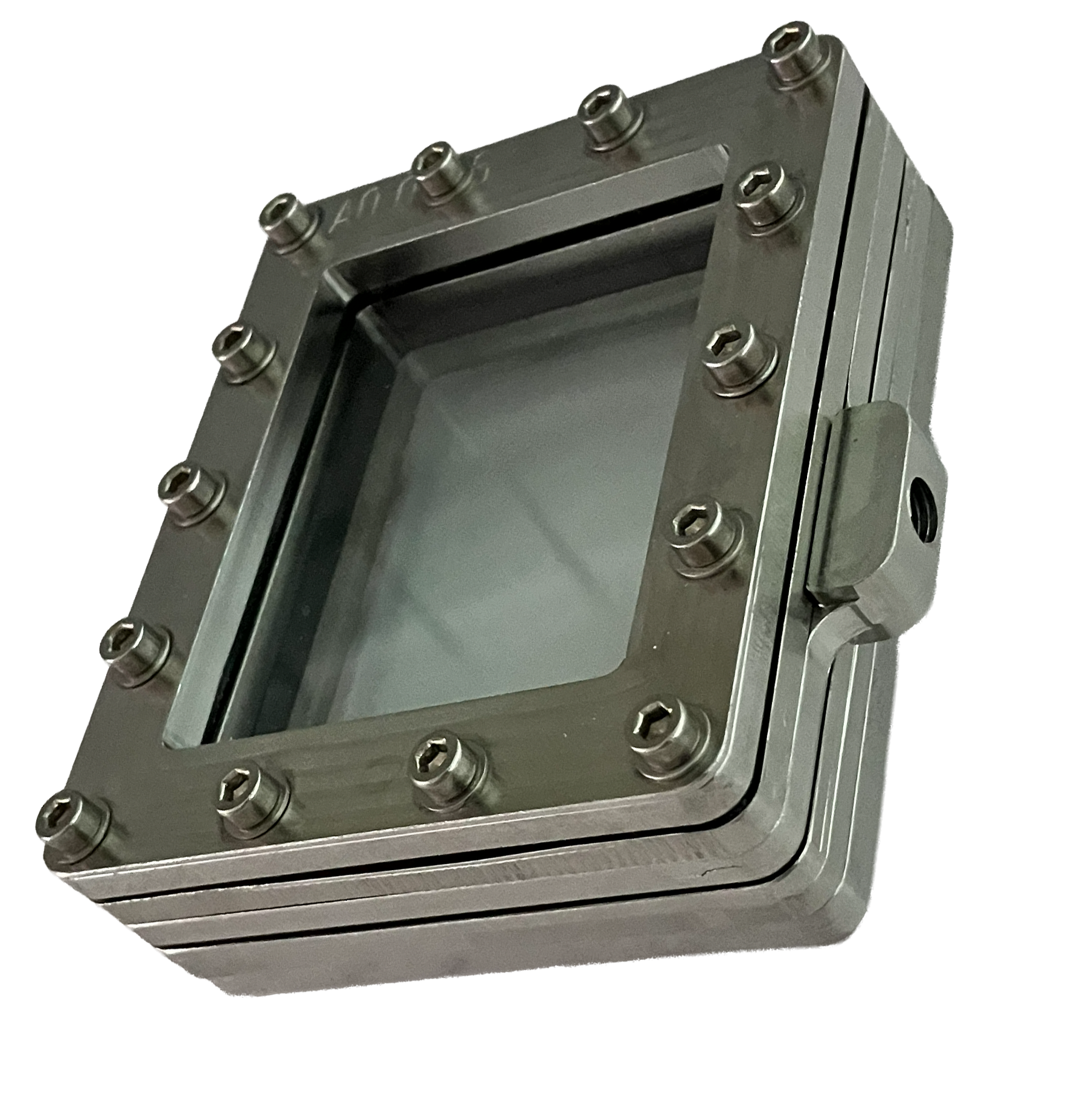

REDEEM See-Through Flow Reactor
Overview:
The See-Through Reactor is a photochemical flow reactor illuminated from both sides to improve light distribution and significantly enhance photochemical reaction rates. It allows you to adjust the thickness of the illuminated thin film to tune light penetration, making it suitable for both small-scale screening and preparative-scale photochemical production.
Specifications:
Volume: 0.26 / 13.19 mL
Illuminated area: 52.76 cm²
Liquid thickness: 0.1-5 mm
Temperature range: -20/200°C
Illuminated Area/Vol: 4-200 cm⁻¹
Pressure range: Up to 12 bar
Residence time: ~ 1/52-1020/52740 seconds
Materials option: Stainless steel, Hastelloy, Cu, PEEK, Anodized Al
Window options: Borosilicate, quartz, ITO, Sapphire
Dimensions: 8.6 x 7.2 cmKey Benefits of See-Through:
Double illumination, to maximize light utilization.
Adjustable liquid thickness
Inline spectroscopy to monitor the reaction.
Possible applications:
Designed for scalable photo-synthesis where even illumination and controlled film thickness improve consistency and throughput. Especially useful with reactants with strong light absorption properties.
Liquid-Liquid
Photocatalytic reaction
Design and Operation:
Robust and Highly Efficient Structure
Modular design made of stainless steel and corrosion-resistant materials, ensuring durability and compatibility with a wide range of reactants.
Optimized configuration for seamless integration with existing industrial equipment and processes.
Simplified operation, reducing the need for manual intervention and maintenance.
Applications
The Redeem See-Through Flow Reactor is the ideal solution for a wide range of industries, including:
Pharmaceutical Industry
Synthesis of active ingredients with high purity and repeatability.
Chemical Industry
Production of polymers, catalysts, and fine chemicals.
Energy sector
Applications in biofuels and thermal conversion processes.
Nanotechnology
Production of nanoparticles and advanced materials.
